190 Cable card, is a card that is used in the NORD-1 CPU.

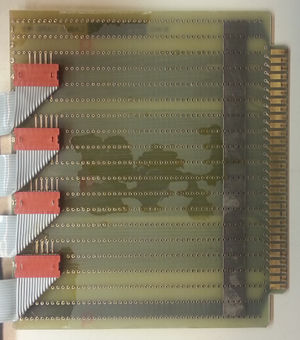

Component side.

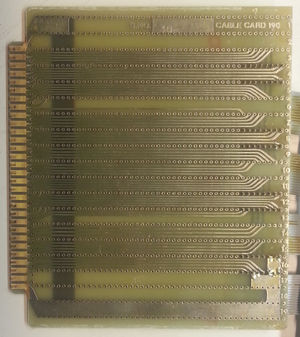

Solder side.

Introduction

The card is made in the standard NORD-1 card format.

CPU model Crate position
29
35 D31, D32

The logic diagram is documented in drawing 2A90.[1]

This card is the receiver card for the 189 Interface buffer/cable card. It has no logic on this side and is only used to connect an I/O crate to the CPU.

Switches and indicators

There are no switches or indicators on this board.

BOM

There is no logic on this card.

Reference

  1. HARDWARE MANUAL NORD 1
