310 Cartridge disc receiver, is a card that is used in the NORD-1 computer in the I/O crate.

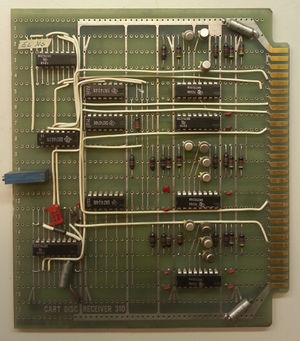

Component side.
Solder side.

Introduction

The card is made in the standard NORD-1 card format.

This card was found in the NORD-1 Serial 47 computer at crate position F17.

No drawings available at the moment.

Switches and indicators

There is a trimmer accessible from the front, function unknown.

BOM

This list contains the logic circuits used, passive components are not listed.

  • 1 x 7400
  • 1 x 7402
  • 2 x 7404
  • 1 x 7474
  • 2 x 74123
  • 3 x 75154
