170 Duplex buffer, is a card that is used in the NORD-1 CPU.

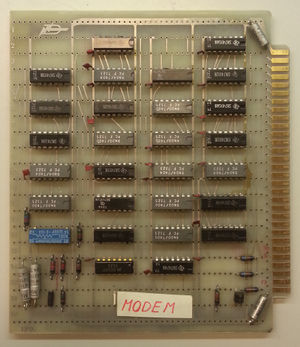

Component side.

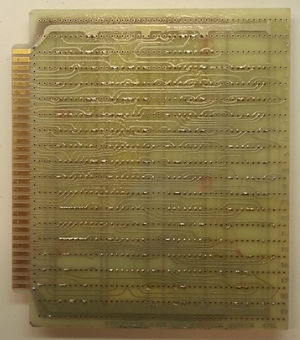

Solder side.

Introduction

The card is made in the standard NORD-1 card format.

CPU model Crate position
29 D30
35 D30

The logic diagram is documented in drawing 2A70.[1]

In the NORD-1 Serial 47 the card is found in position E09 and marked with a sticker "MODEM". The D30 position is occupied by a 195 Duplex Start-stop buffer.

Switches and indicators

There is a trimmer on this board, function unknown.

BOM

This list contains the logic circuits used, passive components are not listed.

  • 6 x 7400
  • 2 x 7401
  • 3 x 7403
  • 4 x 7404
  • 1 x 7410
  • 1 x 7413
  • 1 x 7474
  • 4 x 7493
  • 2 x 7494
  • 2 x 7495
  • 1 x MC889P RTL or DTL Hex inverter made by Motorola

Reference

  1. HARDWARE MANUAL NORD 1
