In early 2020, the Dansk Datahistorisk Forening decided that they needed more space in their storage and that the two machines Batman and Robin together with the filestore needed a new home. Together with the machines were a lot of spare part. I let them know that I was interested in some of the spare parts for my machines and it looked like the two ND-5800 machines would end up in an exhibition in Norway.
This was just before the COVID-19 epidemic broke out and the plans of the move got postponed. In late summer the discussions were taken up again, but now I was the only one expressing any interest in the machines. To avoid the two machines would be scrapped I agreed to take care of the whole lot.

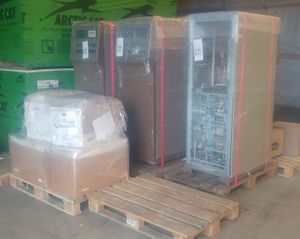

5 pallets from Denmark, the cards from one already loaded in my car.

It took five pallets to transport the lot to Umeå and in late October it arrived here in perfect condition. To help me with the economical part, a collection drive was done on the facebook group and on the mailing list datahistorie@mailman.efn.no. I'm extremely grateful to the support I've been given by both known people and unknown.

Nisse is contemplating why he agreed to help me.

All cabinets have been transported to my house with the help of my good friend Nisse. He is starting to get used to move machines like this. It took three trips with a cargo wan and two trips with my car to get all the equipment moved.

It is finally done so now starts the job of documenting, scanning, making images of media and restoring the machines. I got 14 SCSI disks and many floppies to copy.

Inventory

Machines

All the cabinets in my office outside the computer room.
Some testing and backups needs to be done.

Spare hardware and pieces

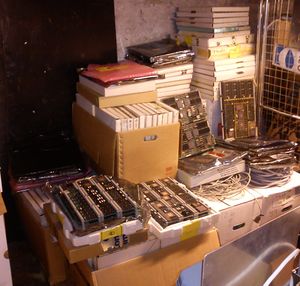

A pallet full of spare parts.
List of spare parts
Inventory number PCB print ECO level Amount Name Location
3006 1 ND100 PERTEC CTR Box 5
3013 4 NO100 8 TERM Box 1,2,5
3015 10 NO100 HDLC, W/A-LO Box 1,2,3,5,7,8
3018 3 N-100 SMD CTRL Box 5,6,8
3019 C 2 SMD DATA Box 1,2
3023 3 NO MEGALINK Box 1,4,8
3027 E 1 FLOPPY DISK CTRL Box 6
3033 3 ND-100 CPU Box 7,8
3041 4 ST506 DISC CONTRL Box 1,4,6
3042 1 1MByte MEM Box 1
3043 3 15 Mhz SMD DATA Box 1,6,8
3044 4 15 Mhz SMD DATA Box 1,4,7
3090 6 ND100 CPU & MM Box 2,5,6,8
3094 4 ETHERNET II Box 1,8
3095 6 ND110CX CPU & MM Box 4,5,6,7
3102 1 ND-100 ETHERNET Box 7
3104 2 MEM MAN II EX CACH Box 5,8
3106 1 N100 STREAM & FLOPPY CTRL Box 5
3108 2 PIOC/256 Box 6,8
3111 2 8 TERM Box 2,7
3112 B 3 N100 8" + 5.25" FL & STR Box 5,6
3202 13 ND-120 CPU, ND-120CX CPU 4 Mbyte Box 1,2,5,6,7,8
3205 1 SCSI FLOPPY Box 6
3207 2 SCSI/FLOPPY Box 5
5009 1 N500 ARITH 2 FAST Box 6
5011 2 N500 Arithm. FAST Box 1,2
5104 1 U PREFETCH Box 5
5111 1 CONTROL I Box 5
5112 1 MEMORY MANAGEMENT Box 7
5113 1 DUAL CHANNEL Box 7
5119 1 Instruction MEM Ch.Dr. Box 7
5121 1 Instruction MEM Box 1
5155 1 N-570 MFB PORT Box 5
5156 2 MFB DYNAMIC RAM 4 MB Box 6
5242 2 BASIC GRAPHIC Box 2
5290 1 DAVID SYSTEM PLUGBOARD Box 1
5411 3 MPM5 DYN RAM 1MByte Box 3,8
5436 1 STC MAGTAPE SWITCH Box 5
5452 1 ETHERNET III Box 1
5454 1 MFB CONTROLLER Box 7
5459 X 1 GRAPHICAL CONTROLLER Box 6
5462 8 DYNAMIC RAM Box 1,5,7,8
5464 2 DOUBLE BUS CTRL Box 6,8
5465 3 N-570 MFB CTRL Box 4,6,7
5467 3 MFB SCSI Box 7,8
5471 1 N-5000 MFB CTRL (JAMES) Box 8
5478 2 JAMES II Box 2
5495 2 GRAPHICAL CTRL Box 2,4
5904 2 PLUGB 1 SAMSON-C Box 2
- 2 PLUG BOARD w.printer Dolphin Box 8
- 3 IBM PC Box 7
320026 1 N-5000 BASIC CPU RALLAR 25 MHz Box 7
- 2 ACER PC bundkort Box 2,7
8010 1 TRITON 88 CPOU-MK1 Box 2
- 1 ACER 1120UX PC board Box 3
- 3 PC boards(?) Box 4,6
- 1 GRAPHICAL CTRL II Box 5
320027 2 N-5000 BASIC CPU RALLAR 45 MHz Box 8
928104 1 N5000 MFB SCSI Box 4
320003 1 4 board CPU Box 3
320002 1 3 board CPU Box 3
- 2 DC110 power supply
- 1 DC200 power supply
- - Various SCSI cables
- - Some Ethernet hardware

Software

There were both diskettes and streamer tapes in this lot. So far I haven't made a complete list of it.

Documentation

Some manuals were included, as well as random notes and a couple of binders with course material. A complete list will follow.

  • Service Handbook Vol. I (31.01.90)
  • Service Handbook Vol. III (31.01.90)
  • Service Handbook Addendum (December 1991)
  • Binder TP-SERVER 5000 ES RALLAR
  • Binder MF HW DOMINO MF CONSOLE SCSI
