ND-5800-Serial 5800.258

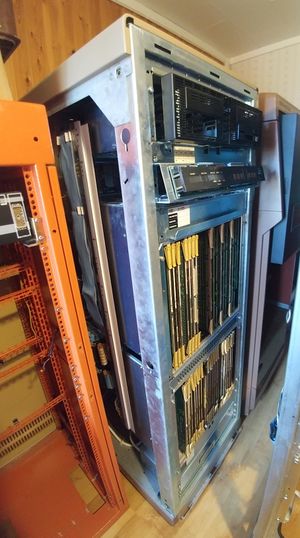

ND-5800 Serial number 5800.258 have spent most of it's life in Luleå in the rooms of LUDD, the local computer club. The previous owner was Ragge. I don't know a lot of the previous history of this system but I will do some research in the future.

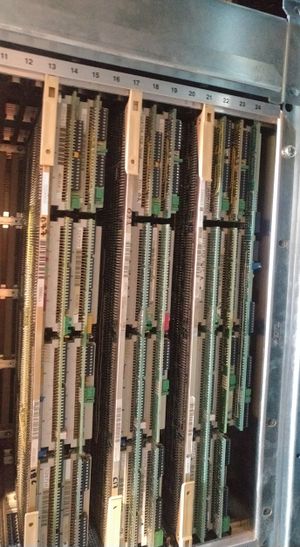

The system has been used as a card storage so the cards are pushed in wherever there was place. With it came three CPU:s, two smaller ones and one maxed out Samson CPU
The system was given to me in the spring of 2018.
Card cage configuration
ND-100 crate
This list reflects the original configuration as well as the current one. At the moment it's been used to store spare cards so the current configuration doesn't make much sense.
| Position | Card | Name | Current card | Current name | Notes |
|---|---|---|---|---|---|
| 1 | 3205 | SCSI/FLOPPY | |||
| 2 | 3096 | OCTOBUS/MPM L. DR. | |||
| 3 | 3023 | NO100 MEGALINK IF | |||
| 4 | 3094 | ETHERNET IF. II | |||
| 5 | 3042 | NO100 2MBY RAM | |||
| 6 | 3043 | 15MHZ SMD CONTROL | |||
| 7 | 3096 | OCTOBUS/MPM L. DR. | |||
| 8 | 3020 | NO100 STC MT CTR. | |||
| 9 | 3023 | NO100 MEGALINK IF | |||
| 10 | 3094 | ETHERNET IF. II | |||
| 11 | 3042 | NO100 2MBY RAM | |||
| 12 | 3111 | 8 TERM IF W/FIFO | |||
| 13 | 3111 | 8 TERM IF W/FIFO | |||
| 14 | 3111 | 8 TERM IF W/FIFO | |||
| 15 | 3111 | 8 TERM IF W/FIFO | |||
| 16 | Unknown | Check which card sits here. | |||
| 17 | 3114 | PLOTT PRINT DMA | |||
| 18 | 3015 | NO100 HDLC W/A.LO. | |||
| 19 | 3020 | STC MT CTR. | |||
| 20 | 3097 | 4 MB MEMORY | |||
| 21 | 3042 | NO100 2MBY RAM | |||
| 22 | 3044 | 15 MHZ SMD DATA |
ND-5000 crate
This list shows both the configuration I got the system in and any changes made.
| Position | Card | Name | Current card | Current name | Notes |
|---|---|---|---|---|---|
| 1 | 5465 | 1 MFB CONTROLLER | |||
| 2 | 5155 | MFB PORT | |||
| 3 | 5411 | DYNAMIC RAM 4 MB | |||
| 4 | Empty | ||||
| 5 | 5462 | MFB DYNAM RAM 16 MB | |||
| 6 | 5462 | MFB DYNAM RAM 8 MB | |||
| 7 | 5452 | ETHERNET III | |||
| 8 | 5464 | 2 DOUBLE BUS CONTR | |||
| 9-12 | Empty | ||||
| 13-15 | 320002 | SAMSON CPU type II | 3 layers | ||
| 16 | Empty | ||||
| 17-19 | 320002 or 320003 | SAMSON CPU type II | 3 layers, check the CPU type, hard to see in pictures. | ||
| 20 | Empty | ||||
| 21-23 | 320003 | SAMSON CPU type III | 4 layers |
Current status
The system resides in the ND-Collection in Umeå. It's operational status isn't known and it is standing in a corner. The card crates have been used as storage space so it needs an overhaul to check that every card is in the right spot as well as checking power supplies.
Plans
The system will be put in working order some time in the future. First it will be documented.
